- SKU: E1659FWU/75
- Vendor: AOC

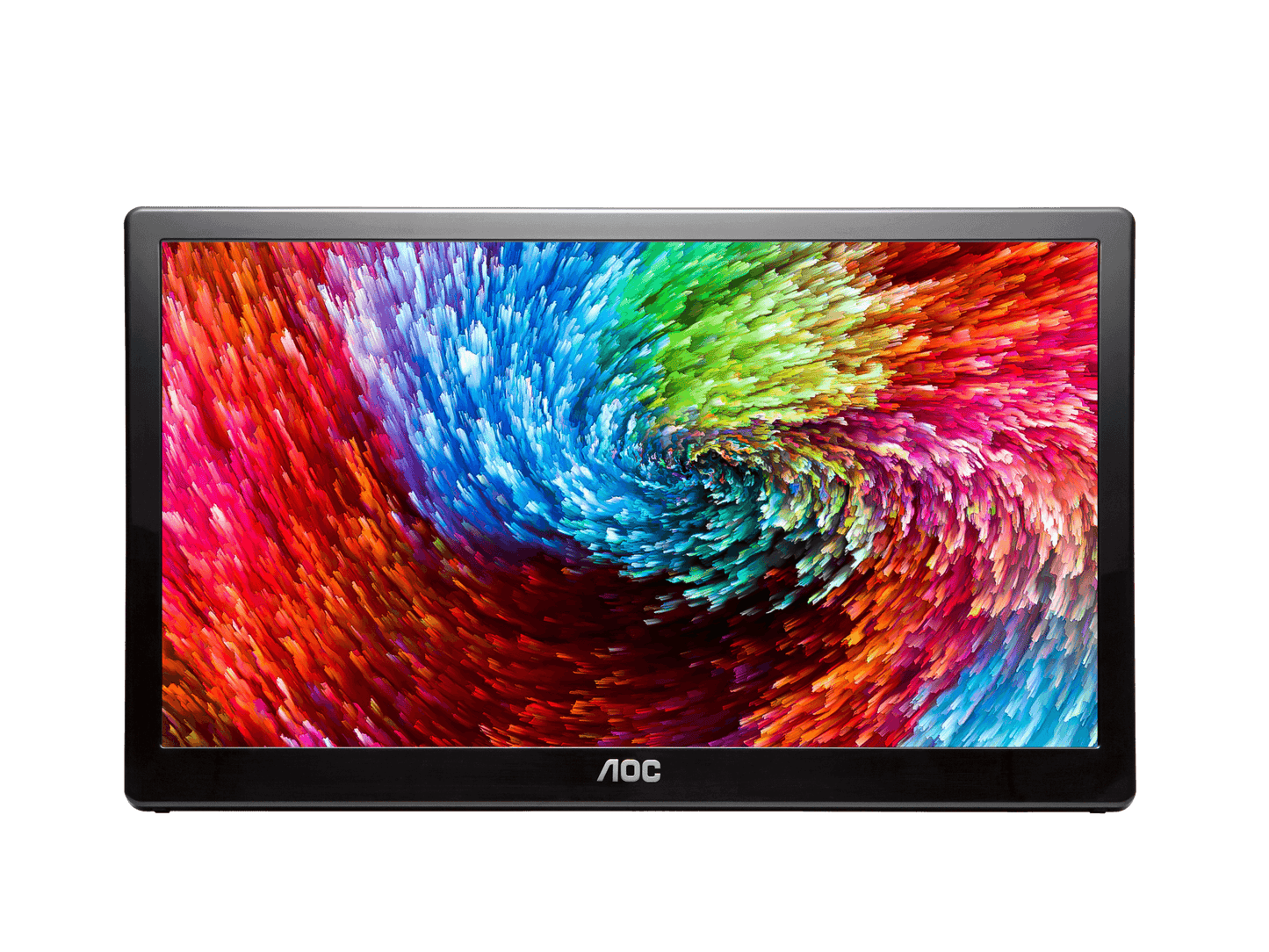

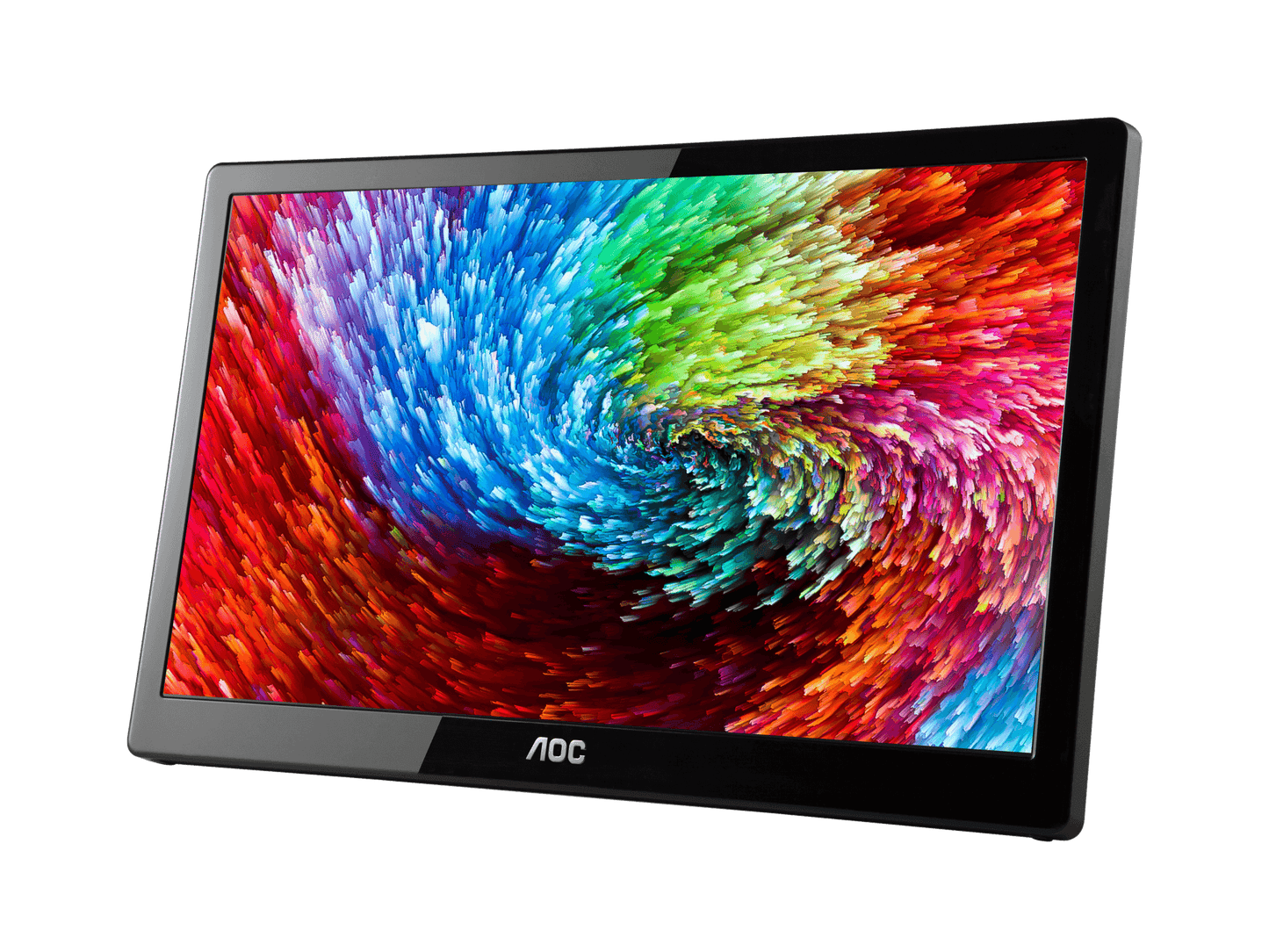

AOC E1659FWU 15.6" WXGA LED Portable LCD Monitor
The 15.6” AOC E1659FWU is a light, portable LED monitor with a slim profile of just 22.9mm, making it easy to carry with you wherever you go. It requires only a single USB 3.0 cable for both power and display signal. Simply plug the monitor into a USB port on your laptop and it is ready for use – no more hassle finding a power point and carrying bulky cables around. With the ability to support multiple monitor connections and compatibility with both PCs and Macs, the E1659FWUis an ideal second monitor and extended display for notebook and desktop PC users. USB 3.0 features a range of impressive advantages over USB 2.0, with synchronous data transmission and a full duplex interface for improved speed, and nearly double the power supply. With a data rate of 5 Gbps, USB 3.0 is able to perform 10 times faster than USB 2.0.
- Ultra Slim
- VESA Mount

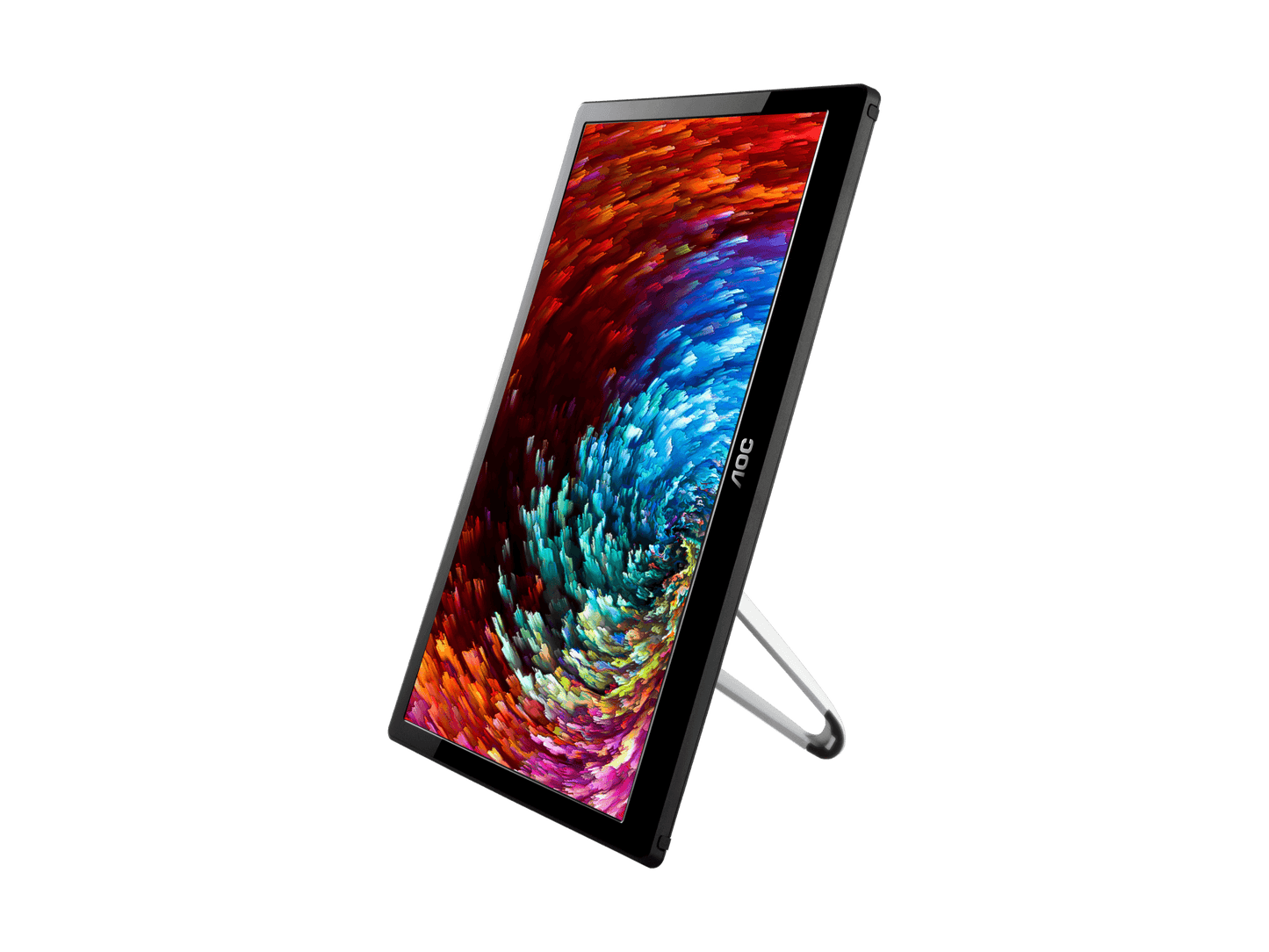

- Auto Pivot Portable
Features
Adaptable and convenient setup

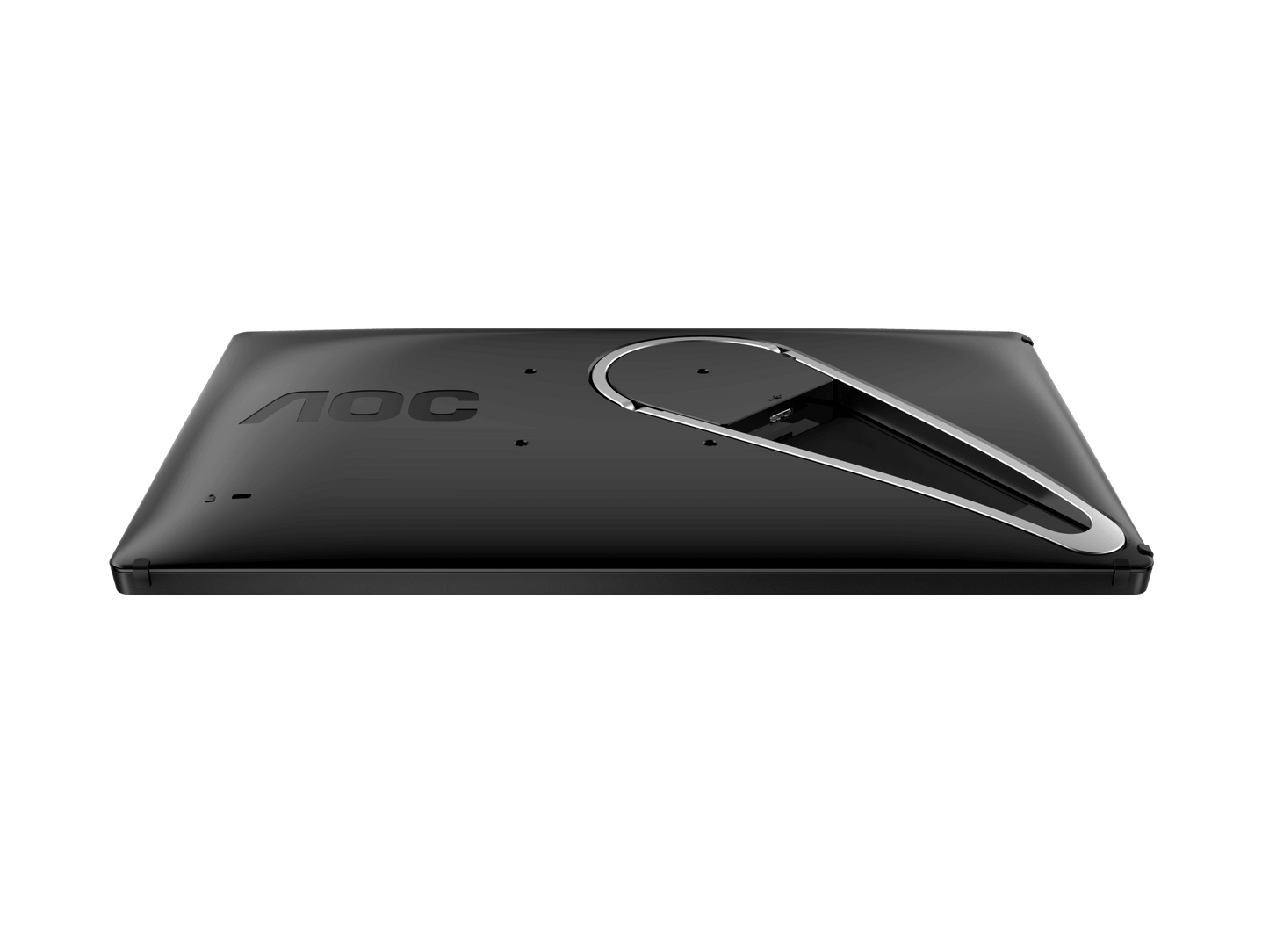

Whether you prefer a wall mount or multi-monitor desk setup, VESA Mount offers the ultimate in flexibility. And when combined with 3rd party accessories, VESA Mount lets you put your monitor wherever you want it.
Function and form in one
Sometimes, less is more: With its minimalistic, slim profile, this monitor seamlessly blends into your working environment instead of obstructing your vision with a bulky casing. Enjoy more space on your desk, easy transportation and an appealing design with this slick, lightweight display.
Specifications
Model name | E1659FWU |
EAN | 471 738594 168 7 |
Panel | 15.6" |
Pixel Pitch (mm) | 0.252 (H) × 0.252 (V) |
Effective Viewing Area (mm) | 344.232 (H) × 193.536 (V) |
Brightness (typical) | 200 cd/m² |
Contrast Ratio | 500 : 1 (typical) |
Response Time | 8ms |
Viewing Angle | 90/50 (CR≥10) |
Color Gamut | |
Color Accuracy | - |
Optimum Resolution | 1366×768 @ 60Hz |
Display Colors | 262K |
Signal Input | USB3.0 |
HDCP Version | - |
USB Hub | - |
Power Supply | PC USB 5V |
Power Consumption (typical) | Power On: <8W (max.), Standby: <1W |
Speakers | - |
Line in & Earphone | - |
Wall-Mount | 75mm × 75mm |
Adjustable Stand | Tilt: +15°~ +30° |
Product without Stand (mm) | - |
Product with Stand (mm) | 232.7 (W) x 371.9 (H) x 22.9 (D) |
Product without Stand (kg) | - |
Product with Stand (kg) | 1.2 kg |
Cabinet Color | Black |
Regulatory Approvals | CE, FCC, cTUVus, TUV-S, C-Tick, KCC, VCCI, J-Moss, e-Standby, BSMI, EPA6.0, Windows 8, RoHS |
