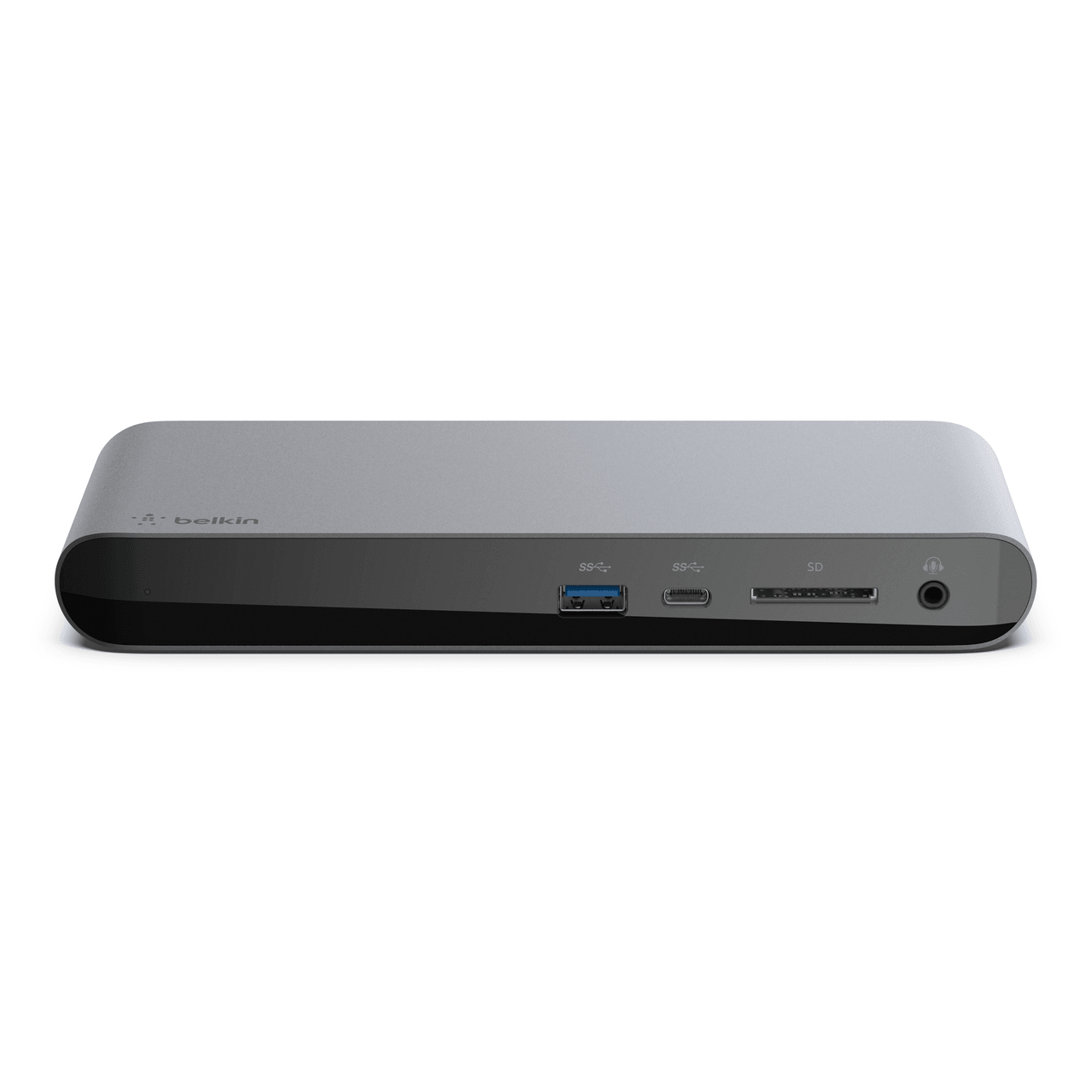

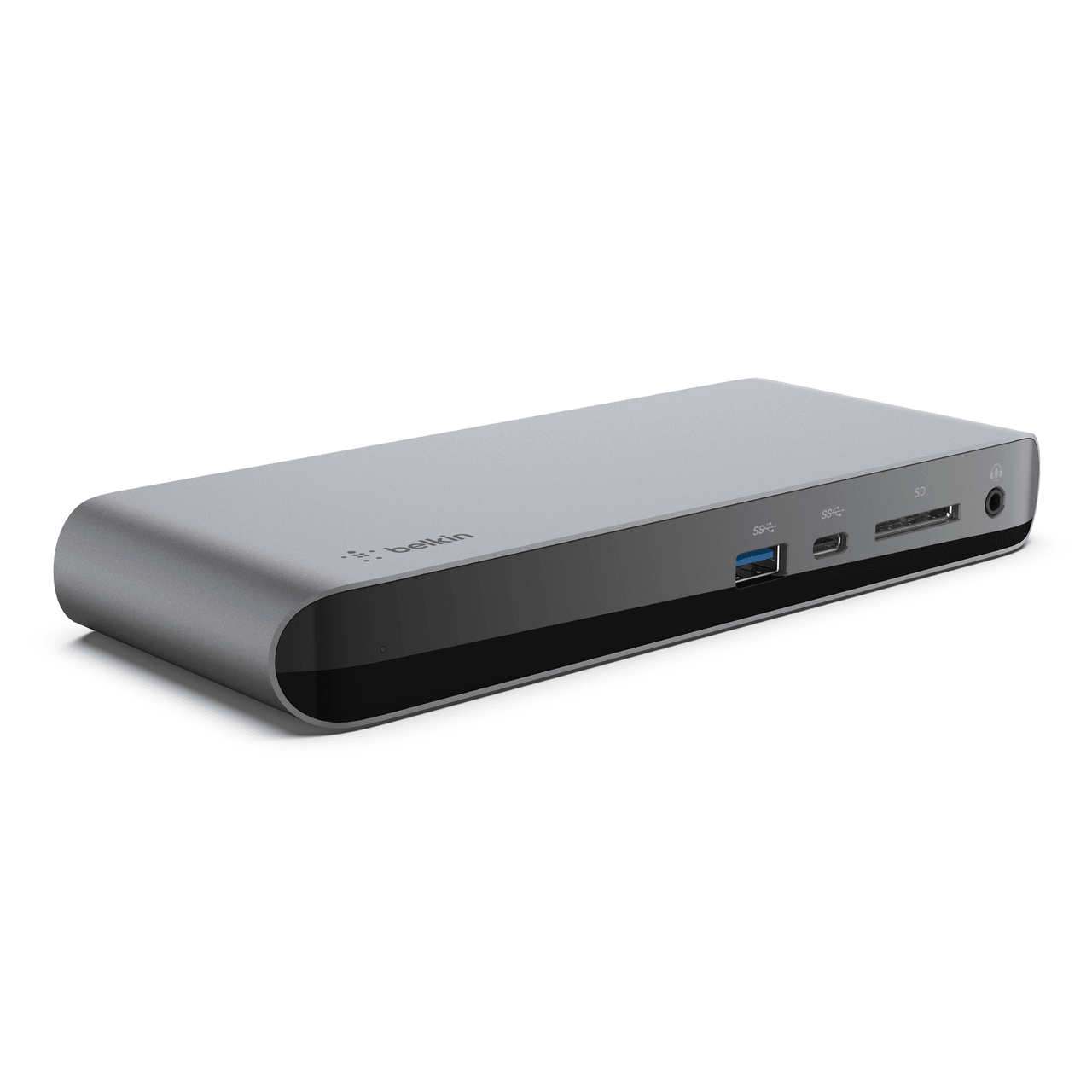

Belkin Thunderbolt 3 Dock Pro

THE ULTIMATE WORKSTATION
The power, speed and pixels of Thunderbolt 3 are best in class, and this smart dock brings all the benefits in a single docking station solution. Compatible with Mac and Windows, simply connect your Thunderbolt 3 or USB-C™ laptop* with the included Thunderbolt 3 cable to instantly create a powerful work station. Enjoy Ultra-High Definition monitor support, up to 40 Gbps transfer rates, 85W of power to your laptop, and support for multiple peripherals via Thunderbolt, USB-A, USB-C, Ethernet, SD and Audio ports, all through a single cable.

• MAC AND WINDOWS COMPATIBLE
• ULTRA HIGH-SPEED SD TRANSFER
• DUAL HIGH-DEFINITION MONITOR SUPPORT
• SLEEK ALUMINUM EXTERIOR
• ROOM FOR ALL YOUR PERIPHERALS

Enjoy easy access to monitors, networks, power and peripherals with multiple ports available.

Features

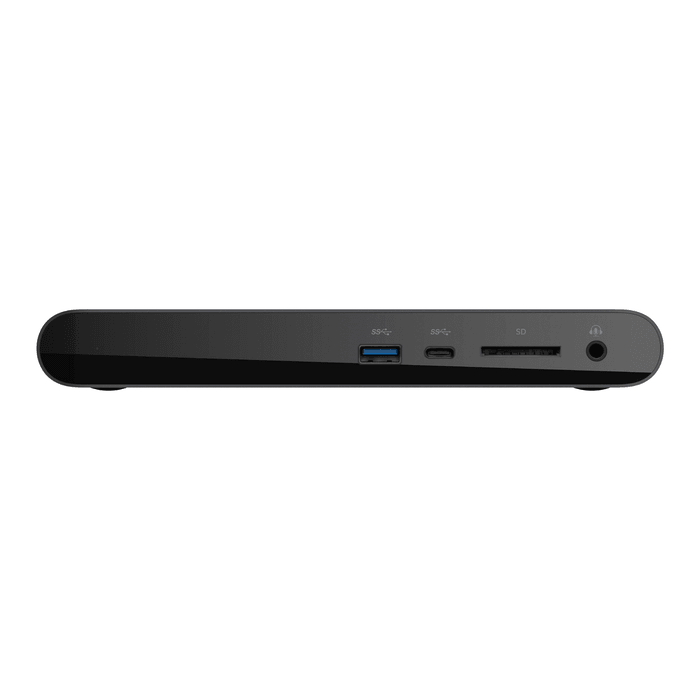

FRONT:
1 x USB-A 3.1 port for USB-A peripherals
1 x USB-C 3.1 port for USB-C devices
SD card reader connects to SD cards without an adapter
Audio in/out for mic and speaker support

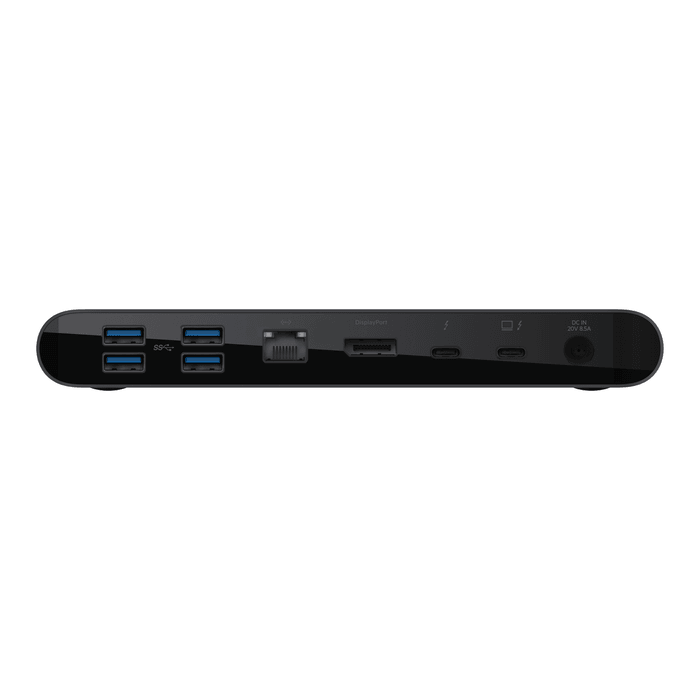

BACK:
170W PSU (Power Supply Unit) powers the dock, and also charges the connected laptop up to 85W, to keep your laptop charged while you work
Thunderbolt 3 port connects to laptop with the included Thunderbolt 3 cable
Thunderbolt 3 port connects to high-resolution monitor/display and Thunderbolt 3/USB-C peripherals
DisplayPort™ connects to high-resolution monitor/display
Gb Ethernet for reliable, hardwired Ethernet connection
4 x USB-A 3.0 ports for devices that connect via USB-A such as a mouse, keyboard or printer

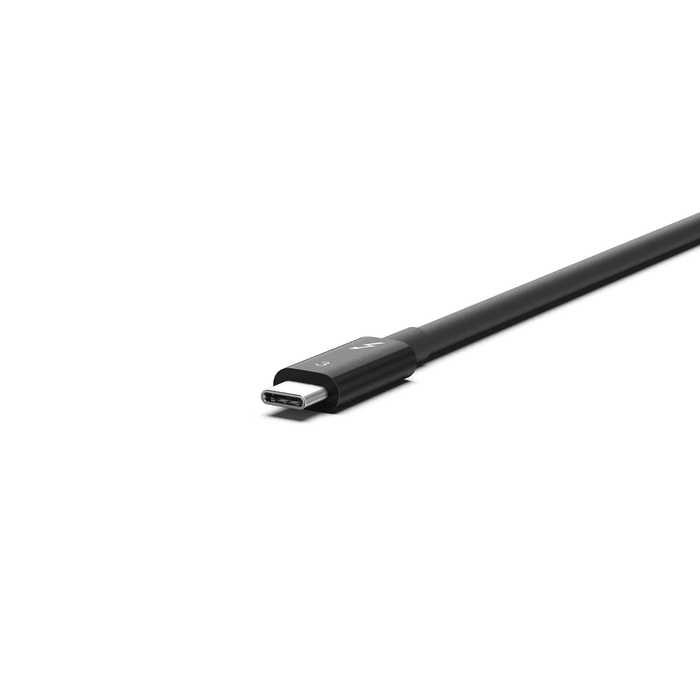

THUNDERBOLT 3 CABLE INCLUDED
The dock connects to your Thunderbolt 3 or USB-C laptop through a single cable, which is included in the box. At 2.6ft / 0.8m, this cable is long enough to fit around furniture or reach further from the main outlet, to offer a more versatile desk configuration.

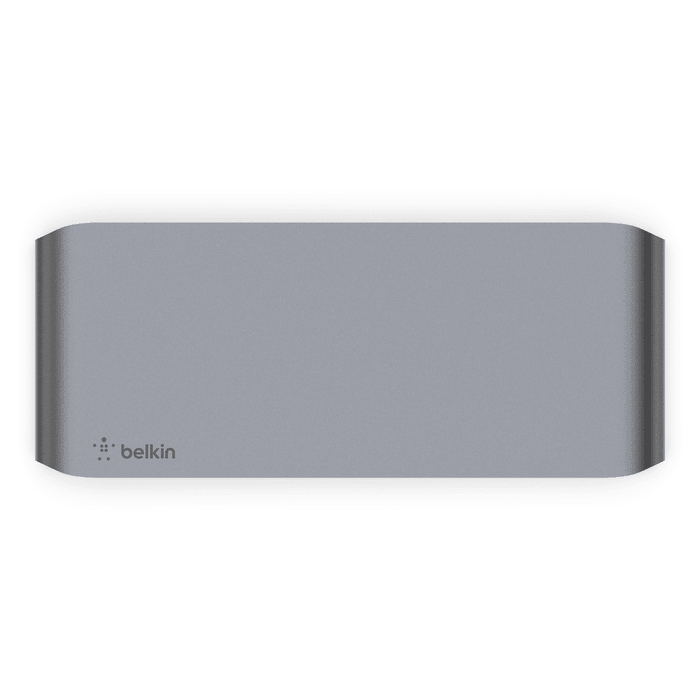

SLEEK ALUMINUM EXTERIOR
Durable aluminum casing protects the delicate circuitry inside the dock, while presenting a stylish, minimal exterior designed to suit any work space.

DUAL HIGH-DEFINITION MONITOR SUPPORT
Thunderbolt 3 Dock Pro supports dual high-definition monitors for a versatile workspace. Please see the table below for specific resolution capabilities for all monitor combinations.

POWER TO SHARE
With the included 170W power supply unit, the Thunderbolt 3 Dock Pro provides up to 85W of power for a connected laptop. Also known as "upstream charging," this keeps your laptop charged while in use, without a separate power cable.

Specifications

I/O Ports (Front)	1 x USB-A 3.1 port for USB-A peripherals 1 x USB-C 3.1 port for USB-C devices 1 x SD card reader 1 x Audio in/out for mic and speaker support
I/O Ports (Back)	1 x 170W PSU (Power Supply Unit) 2 x Thunderbolt 3 port 1 x DisplayPort™ 1 x Gb Ethernet 4 x USB-A 3.0 ports
Single Monitor Support
Thunderbolt 3 Laptop	Laptop running High Bit Rate 3: 8K (7680 x 4320) @ 30Hz Laptop running High Bit Rate 2: 4K (3840 x 2160) @ 60Hz
USB-C Laptop	Laptop running High Bit Rate 3: 5K (5120 x 3200) @ 30Hz Laptop running High Bit Rate 2: 4K (3840 x 2160) @ 30Hz
Dual Monitor Support
Thunderbolt 3 Laptop	Laptop running High Bit Rate 3: 4K (3840 x 2160) @ 60Hz Laptop running High Bit Rate 2: 4K (3840 x 2160) @ 30Hz
USB-C Laptop	Laptop running High Bit Rate 3: 4K (3840 x 2160) @ 30Hz & 1080P @ 60Hz Laptop running High Bit Rate 2: 1080P @ 60Hz
Dimensions	W: 200mm / 7.87 in D: 81mm / 3.19 in H: 26mm / 1.02 in
Weight	Weight: 422grams / 14.89 oz

What's Included

Package includes

Thunderbolt 3 Dock Pro 0.8m / 2.6ft. Thunderbolt 3 cable
